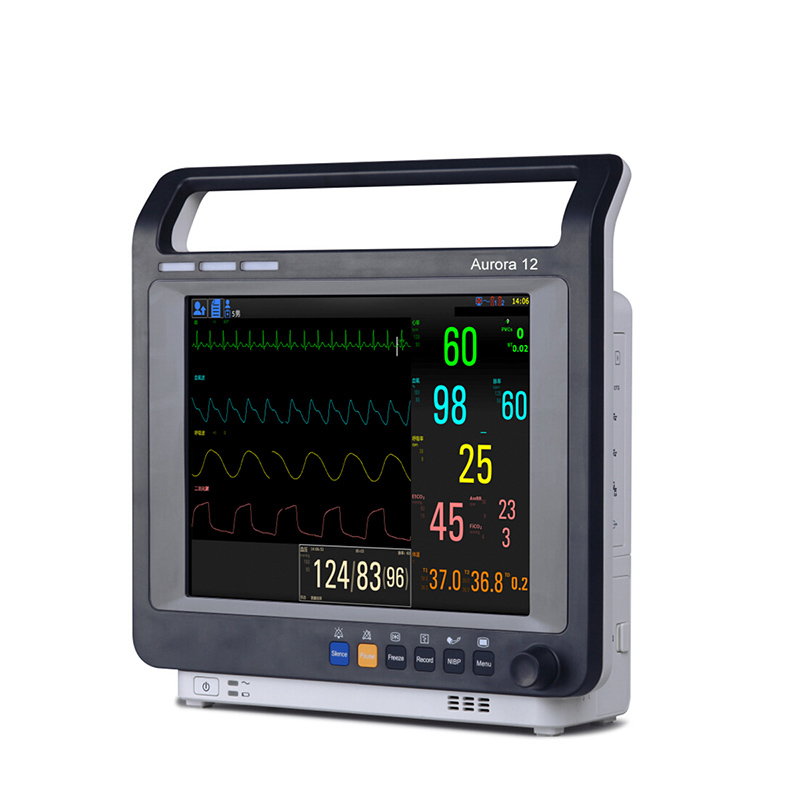

Aurora-12 12.1-inch big screen patient monitor with big font and drug calculation suit for ICU
Aurora-12 12.1-inch big screen patient monitor with big font and drug calculation suit for ICU
Patient monitor
Product Detail:
◆Indication of incorrect manipulation and malfunction analysis
◆Patient info input management function
◆Multi-lead ECG waveforms display in phase
◆Large volume of tabular and graphic trends information storage and easy to recall
◆Capture dynamic waveforms
◆Up to 2.5 hours working capacity of built-in rechargeable lithium battery
◆Unique accessory management cabinet
Networking capacity
◆Option: EtCO2, 5AH Lithium battery, wireless communication module (WIFI, GPRS), touch screen, IBP, AG.

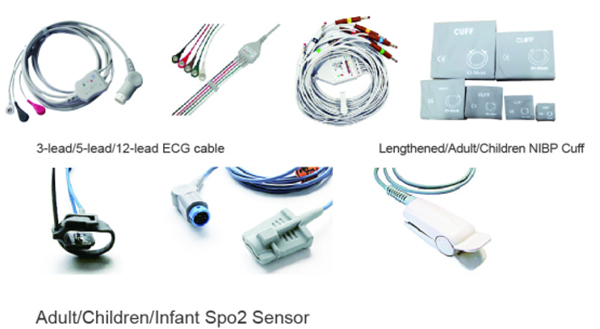

Accessories:
Technique Parameter
|
Standard configuration |
|
|
Screen |
|
| Display Type | 12″ color TFT LCD |
| Resolution | 800×600 pixels |
| Waveforms | Up to 7 |
|
ECG |
|
| Input | 3/5 wire ECG cable |
| Lead section | I II III aVR, aVL, aVF, V |
| Gain selection | *0.25, *0.5, *1, *1.2 |
| Sweep speed | 6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s |
| Heart rate range | 15-30bpm |
| Calibration | ±1mv |
| Accuracy | ±1bpm or ±1% (select the bigger data) |
|
NIBP |
|
| Test method | Oscillometer |
| Philosophy | Adult, Pediatric and Neonate |
| Measurement type | Systolic Diastolic Mean |
| Measurement parameter | Automatic, Continuous measurement |
| Measurement method Manual | mmHg or ±2% |
|
SPO2 |
|
| Display Type | Waveform, Data |
| Measurement range | 0-100% |
| Accuracy | ±3% (between 70%-100%) |
| Pulse rate range | 20-300bpm |
| Accuracy | ±1bpm or ±2% (select the bigger data) |
| Resolution | 1bpm |
|
2-Temperature (Rectal & Surface) |
|
| Number of channels | 2 channels |
| Measurement range | 0-50℃ |
| Accuracy | ±0.2℃ |
| Display | T1, T2, ☒T |
| Unit | ºC/ºF selection |
| Refresh cycle | 1s-2s |
|
Respiration (Impedance & Nasal Tube) |
|
| Measurement type | 0-150rpm |
| Accuracy | ±1bm or ±5%, select the bigger data |
| Resolution | 1rpm |
|
Optional configuration |
|
|
EtCO2-Plug & Play |
|
| Measurement type | Side stream |
| Measurement range | 0-10.0%; 0-76mmHg |
| Accuracy | ＜5.0%, ±0.28kPa; ±2mmHg |
| ＞5.0%, ±10% | |
|
2-IBP (optional) |
|
| Measurement range | 10～300mmHg |
| Number of channels | 1 or 2 channels |
| Accuracy | ±1mmHg or ±2%, select bigger data |
| Pressure tag | ART, CVT, RVP, LAP, RAP, PAP, ICP, LVP |
|
12 leads ECG (optional) |
|
| Input | 3/5/10 wires ECG cable |
| Lead section | I, II, III aVR, aVL, aVF, V(V1-V6) |
| Heart rate range | 15-380bpm |
| Calibration | ±1mv |
