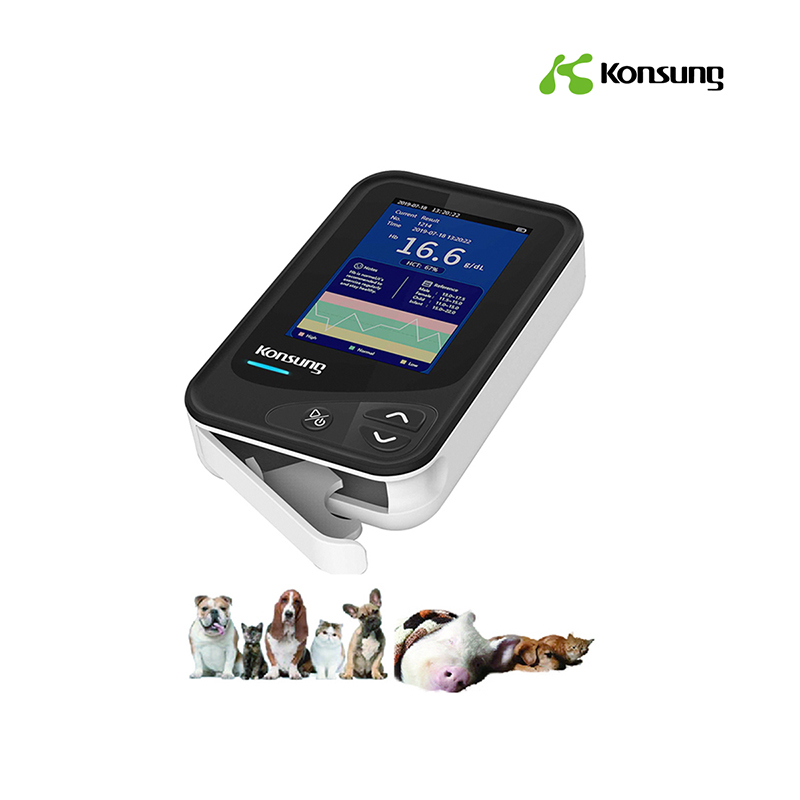

Veterinary Hemoglobin Analyzer

Short Description:

◆The analyzer is used for quantitative determination the total amount of hemoglobin in human whole blood by photoelectric colorimetry. You can quickly obtain reliable results through simple operation of the analyzer. The working principle is as follows: place the microcuvette with blood specimen on the holder, the microcuvette serves as pipette and reaction vessel. And then push the holder to the proper position of the analyzer, the optical detecting unit is activated, the light of a specific wavelength passes through the blood specimen, and the collected photoelectric signal is analyzed by the data processing unit, thereby obtaining the hemoglobin concentration of the specimen.

Send email to us

Product Detail

Veterinary Hemoglobin Analyzer

Veterinary hemoglobin analyzer

Product details:

◆Immediate HB and Hct results≤3 seconds

◆Hand-held size with lab-quality accuracy: CV≤1.5%

◆Low sample volume: 7µl (capillary or venous blood)

◆Large memory stores: up to 2000 test results

◆Long standby with built-in battery: 6 hours

◆Easy and simple operation: 3 steps only

◆Reagent-free cuvette with long shelf life: 2 years

◆There are professional veterinary software to suitable different kinds of animals, such as cat, dog, horse, mouse, rat, rabbit, pig, cow, monkey, sheep…

◆ 3.5″ color TFT, windows interface all testing parameter displayed simultaneously;

◆ Windows operation system graphical buttons mouse and keyboard operation;

◆ Large storage capacity: up to 10000 samples+ 3 histograms;

◆ Internal thermal-sensitive printer or external printer;

◆ RS232 interface, PC connecting.

Specification

S/N	Feature	Description
1	Item Name	Veterinary hemoglobin Analyzer
2	Model Number	H7
3	Methodology	Reflectance Photometry
4	Detection Principle	Methemoglobin
5	Hb Measurement Range	4.5-25.6g/dL
6	Scale	switchable in g/dL,g/L,mmol/L
7	Hct Range	14% ~ 76%
8	Sample	Fresh capillary whole blood
9	Sample Size	7μl
10	Response Time	<3 seconds
11	Memory	1000 test results with date and time
12	Coding	YES
13	Backlight	OPTIONAL
14	Hb Within Run Prevision	≤ 3%
15	Hb Total Precision CV	≤ 8%
16	Accuracy	Hb 4.5-10 g/dL, ± 0.8 g/dL; Hb 10-25.6g/dL, ± 8%
17	LCD Display	37×39mm
18	Unit Dimension	126×57×25mm(L×W×H)
19	Unit Weight	Approx.185g (with battery)
20	Packing	1pc/box,24pcs/carton
